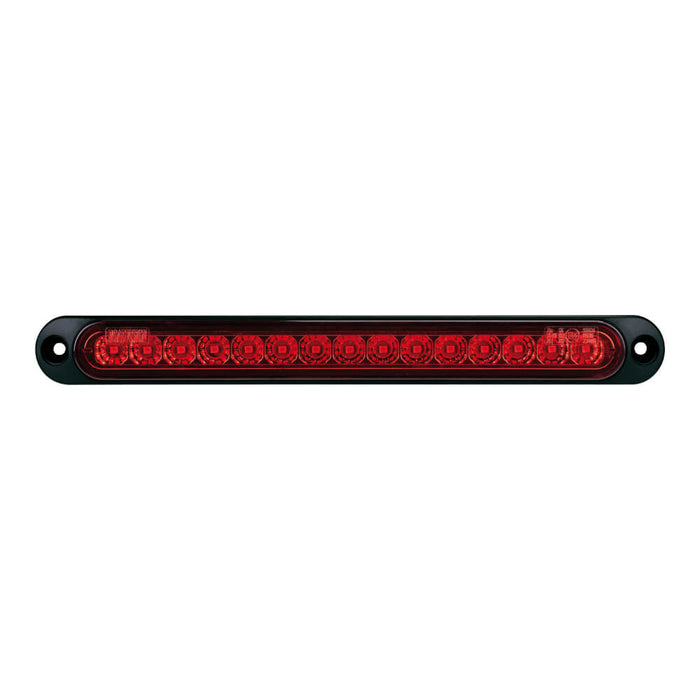

Roadvision LED Stop/Tail Lamp BR70 Series Red
ROADVISION’s BR70 Series LED signal lamps are a versatile, ultra-slimline DIY lighting solution! At only 28mm wide, the BR70 Series are designed for applications where space is at a premium. Available in Stop/Tail, Indicator & Reverse, the Indicator is also available with a sequential function.
The BR70 Series delivers the durability of maintenance free LED technology and greater visibility for increased safety. They are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR70 Series strip signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and high impact ABS housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
Features
- Ultra-slimline LED strip signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & high impact ABS housing
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR/ECE approved for all functions
Part Number | BR70R | BR70A | BR70W | BR70AS |
---|---|---|---|---|
Description | Stop/Tail Rear Strip Lamp | Indicator Rear Strip Lamp | Reverse Rear Strip Lamp | Sequential Indicator Rear Strip Lamp |
Functions | Stop/Tail | Indicator | Reverse | Sequential Indicator |
Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
Number of LED's | 15 LED's | 15 LED's | 15 LED's | 15 LED's |
Current Draw Amps | 0.1/0.05A @ 13.8V | 0.1A @ 13.8V | 0.1A @ 13.8V | 0.12A @ 13.8V |
Dimensions AxBxC | 252x28x23.5mm | 252x28x23.5mm | 252x28x23.5mm | 252x28x23.5mm |
Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
Housing Construction | High Impact ABS | High Impact ABS | High Impact ABS | High Impact ABS |
Mounting Hole /Cut Out | 234mm | 234mm | 234mm | 234mm |
Cable Length | 300mm Tinned Cable | 300mm Tinned Cable | 300mm Tinned Cable | 300mm Tinned Cable |
ADR Approval | ECE E4-7R-028536 | ECE E4-6R-0161904 | ECE E4-23R-0023465 | CRN 50353 |
