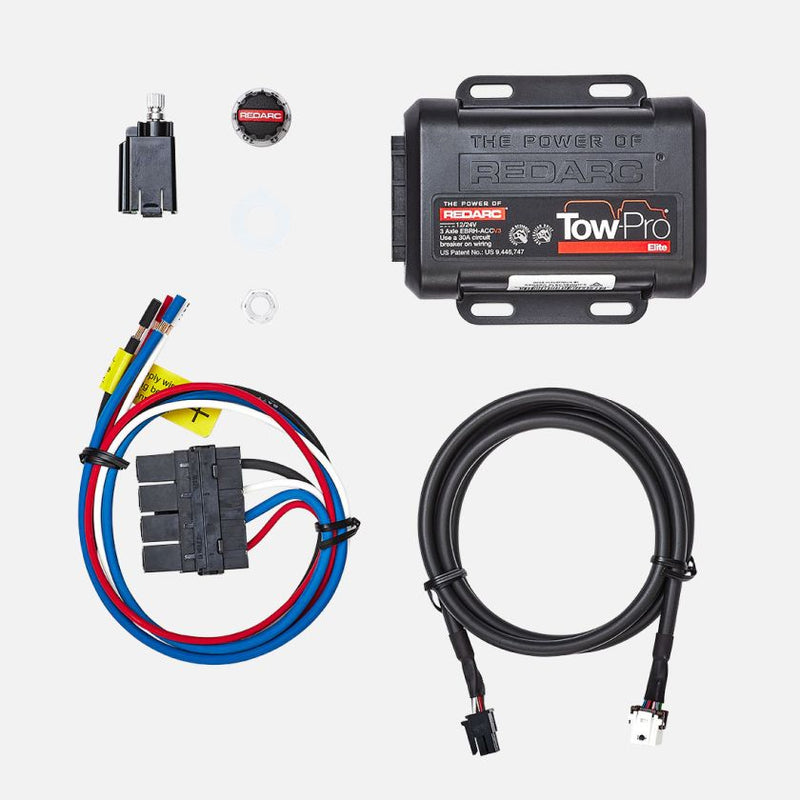

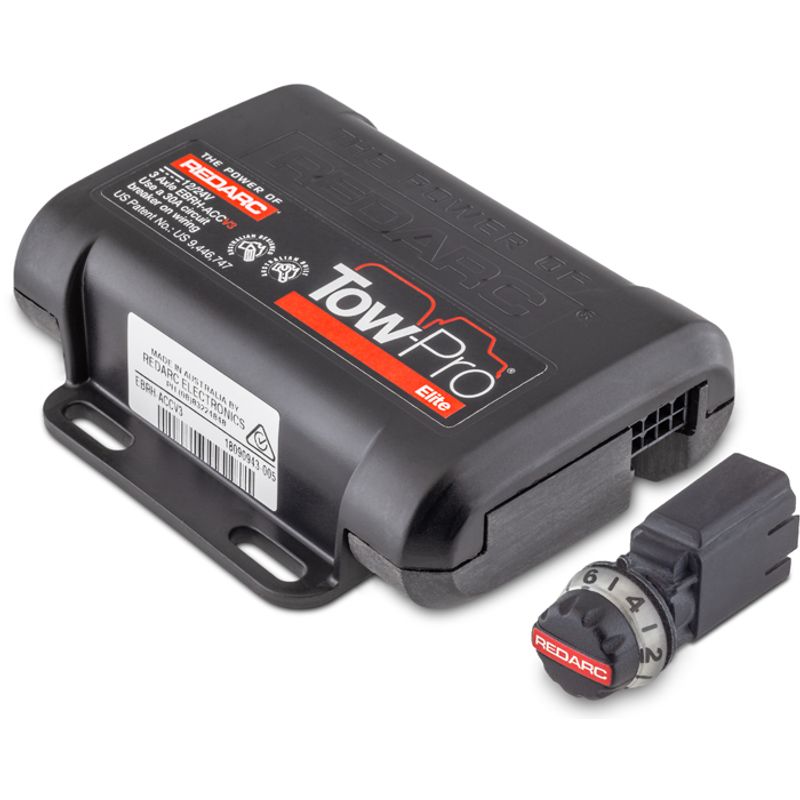

REDARC Tow-Pro Elite V3 Electric Trailer Brake Controller EBRH-ACCV3
ACCESSORIES LISTED BELOW
The Tow‑Pro® Elite is an electric trailer brake controller designed to suit most common trailer braking applications. It requires minimal dash space and is simple to install and operate.
The Tow‑Pro® Elite has selectable Proportional or User Controlled trailer braking modes so you can choose the braking style that suits the road/terrain conditions or vehicle type.
The Tow‑Pro® Elite features Active Calibration which constantly monitors the direction of travel and will even calibrate with no trailer attached, and can be mounted in any orientation.
The unit can operate electric trailer brakes from either 12V or 24V vehicle systems without the need for manual selection or extra components or wiring.
The unit can operate Electric/Hydraulic trailer brakes from 24V vehicle systems when installed with a suitable adapter such as a REDARC EB24A. The Tow-Pro® Elite is ADR compliant when installed as directed and is approved for use with AL-KO ESC and Dexter DSC sway control systems.
Specifications
| Input (Operating) Voltage | 9 - 32VDC |
| Input Fuse Rating | 30A (Circuit Breaker) |
| Standby Current Draw | <10mA |
| Output System Voltage | 12VDC |
| Output Current Rating (Cont.) | 25A |
| Length (mm) | 85 |
| Width (mm) | 100 |
| Height (mm) | 30 |
| Weight (kg) | 0.2 |
| Warranty | 2 Years |
Accessories - Installation
| Redarc 30A Circuit Breaker Kit | CBK30-EB |
| Redarc Replacement Head Switch | EBRH-ACCV3-RH |
Accessories - Mounting Kit
| Redarc Tow-Pro Elite Mounting Kit | EBMK-001 |
Accessories - Wiring Kits
| Vehicle | Part Number |
| Suits Ford Everest/Ranger | TPWKIT-012 |
| Suits Holden Colorado | TPWKIT-013 |
| Suits Mazda BT-50 | TPWKIT-013 |
| Suits Isuzu (all models) | TPWKIT-013 |
| Suits Mitsubishi Pajero | TPWKIT-013 |
| Suits Mitsubishi Triton | TPWKIT-014 |
| Suits Nissan Navara | TPWKIT-014 |
| Suits Toyota Hilux | TPWKIT-013 |
| Suits Toyota Fortuner | TPWKIT-013 |
| Suits Toyota Kluger | TPWKIT-013 |
| Suits Toyota LC200 | TPWKIT-014 |
| Encapsulated Protection Device | EPDK-001 |
Accessories - Remote Head Wiring Kits
| Lead Length | Part Number |
| 1 Metre | RHWK-001 |
| 2 Metre | RHWK-002 |
| 3 Metre | RHWK-003 |
| 4 Metre | RHWK-004 |
| 5 Metre | RHWK-005 |
| 6 Metre | RHWK-006 |
Accessories - Switch Inserts
| Vehicle | Part Number |
| Universal model | TPSI-001 |
| Suits Toyota Hilux, Mitsubishi Triton | TPSI-002 |
| Suits Holden Colorado | TPSI-003 |
| Suits Isuzu D-MAX SX | TPSI-005 |
| Suits Isuzu D-MAX LS/MU-X | TPSI-006 |
| Suits Toyota 70 Series | TPSI-007 |
|
Suits Nissan Pathfinder R52 (2013-) |
TPSI-008 |
| Suits Mazda BT50 | TPSI-009 |
| Universal Remote Head Kit | TPSI-010 |
| Suits Toyota 2019+ (Square type) | TPSI-011 |
| Remote housing replacement | TPSI-012 |
