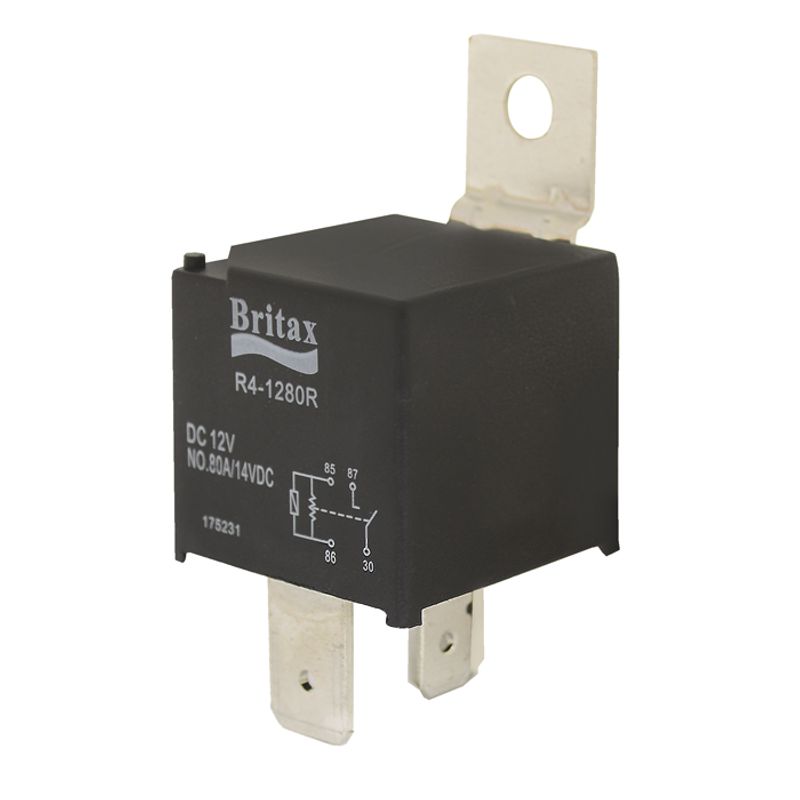

Britax Mini Relay 12V 80A 4 Pin N/O Contacts SPST 9.5mm Resistor Protected
by Britax
Original price
$13.25
-
Original price
$13.25
Original price
$13.25
$13.25
-
$13.25
Current price
$13.25
SKU R4-1280R
Specifications:
Pull In Voltage: | 8.4V |
Features: | Sealed Relay with IP67 Rating. |
Contacts: | Silver AgSnO2 |
Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
Terminal Material: | Zinc Plated |
IP Rating: | IP67 |
Protection: | Resistor |
Terminal Dimensions: | 2 x 6.3mm; 2 x 9.5mm |
Brand: | BRITAX |
Voltage: | 12V |
Mounting Bracket: | Removable metal bracket |
Dimensions: | 26.5(H) x 29(D) x 29(W)mm |
Amperage: | 80A |
Coil Power Consumption: | 1.8W |
Type: | SPST N/O |
Terminals - #: | 4 Pin |
