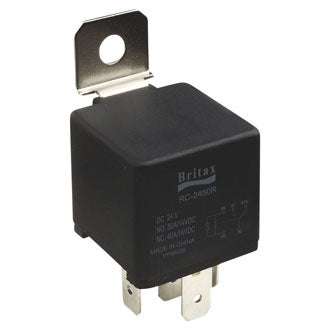

Britax Mini Relay 12V 30/40A 5 Pin Change Over SPDT Resistor Protected
by Britax
Original price
$6.65
-
Original price
$6.65
Original price
$6.65
$6.65
-
$6.65
Current price
$6.65
SKU RC-1230R
Specifications:
Pull In Voltage: | 8.4V |
Features: | Sealed Relay with IP67 Rating. Supplied with snap |
Contacts: | Silver AgSnO2 |
Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
Terminal Material: | Zinc Plated |
IP Rating: | IP67 |
Protection: | Resistor |
Terminal Dimensions: | 6.3mm |
Brand: | BRITAX |
Voltage: | 12V |
Mounting Bracket: | Removable metal bracket |
Dimensions:: | 24.5(H) x 26.5(D) x 26.5(W)mm |
Amperage | N/C 30A; N/O 40A |
Coil Power Consumption: | 1.6W |

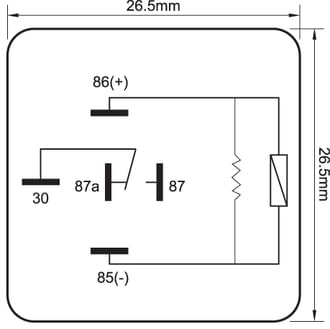

Type: | SPDT N/O N/C |
Terminals - #: | 5 Pin |
