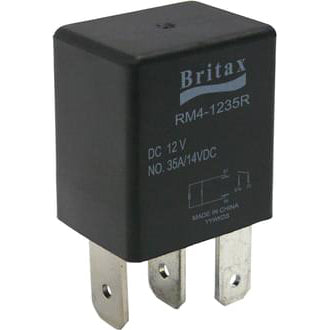

Britax Micro Relay 12V 35A 4 Pin N/O Contacts SPST Resistor Protected
by Britax
Original price
$6.25
-
Original price
$6.25
Original price
$6.25
$6.25
-
$6.25
Current price
$6.25
SKU RM4-1235R
Specifications:
| Pull In Voltage: | 8.4V |
| Features: | Sealed Relay with IP67 Rating. |
| Contacts: | Silver AgSnO2 |
| Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
| Terminal Material: | Zinc Plated |
| IP Rating: | IP67 |
| Protection: | Resistor |
| Terminal Dimensions: | 2 x 4.8mm; 2 x 6.3mm |
| Brand: | BRITAX |
| Voltage: | 12V |
| Mounting Bracket: | Removable metal bracket |
| Dimensions: | 26(H) x 23(D) x 15.5(W)mm |
| Amperage: | 35A |
| Coil Power Consumption: | 1.5W |
| Type: | SPST N/O |
| Terminals - #: | 4 Pin |
