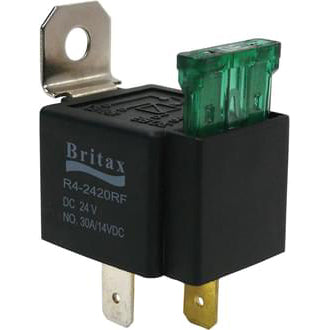

Britax Mini Relay 24V 30A 4 Pin N/O Contacts Fused SPST Resistor Protected
by Britax
Original price
$9.70
-
Original price
$9.70
Original price
$9.70
$9.70
-
$9.70
Current price
$9.70
SKU R4-2430RF
Specifications:
Pull In Voltage: | 16.8V |
Terminals - Width: | 6.3mm Zinc Plated |
Features: | Supplied with snap in Bracket |
Contacts: | Silver AgSnO2 |
Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
Terminal Material: | Zinc Plated |
IP Rating: | IP67 |
Protection: | Resistor |
Terminal Dimensions: | 6.3mm |
Brand: | BRITAX |
Voltage: | 24V |
Mounting Bracket: | Removable metal bracket |

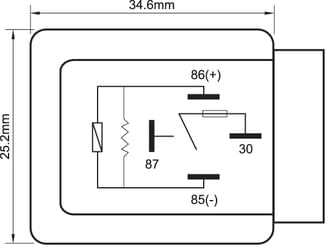

Dimensions: | 21(H) x 34.6(D) x 25.2(W)mm |
Amperage: | 30A |
Coil Power Consumption: | 1.8W |
Type: | SPST N/O |
Terminals - #: | 4 Pin |
