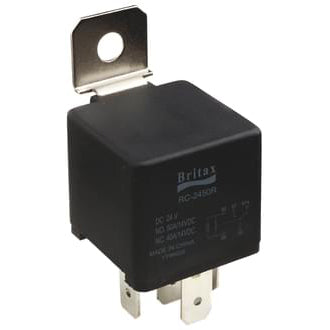

Britax Mini Relay 12V 40A 5 Pin N/O Contacts SPST Resistor Protected
by Britax
Original price
$7.80
-
Original price
$7.80
Original price
$7.80
$7.80
-
$7.80
Current price
$7.80
SKU R5-1240R
Britax Automotive Relays. New features to suit more applications. New epoxy sealed relays with resistance to water and dust ingress. Applications include; mining, marine, agriculture and heavy industrial.
Specifications:
Pull In Voltage: | 8.4V |
Features: | Sealed Relay with IP67 Rating. Supplied with snap |
Contacts: | Silver AgSnO2 |
Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
Terminal Material: | Zinc Plated |
IP Rating: | IP67 |
Protection: | Resistor |
Terminal Dimensions: | 6.3mm |
Brand: | BRITAX |
Voltage: | 12V |
Mounting Bracket: | Removable metal bracket |
Dimensions: | 24.5(H) x 26.5(D) x 26.5(W)mm |
Amperage: | 40A |
Coil Power Consumption: | 1.6W |
Type: | SPST N/O |
Terminals - #: | 5 Pin |
