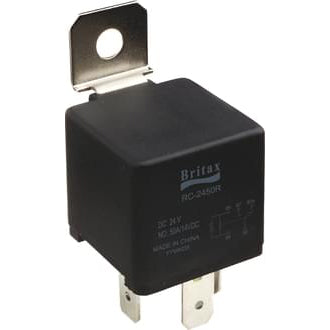

![Britax Mini Relay 12V 40A 4 Pin N/O Contacts SPST Resistor Protected](http://www.nationwideautoparts.com.au/cdn/shop/files/R4-1240R_330x330.jpg?v=1717731802)
Britax Mini Relay 12V 40A 4 Pin N/O Contacts SPST Resistor Protected
by Britax
Original price
$7.25
-
Original price
$7.25
Original price
$7.25
$7.25
-
$7.25
Current price
$7.25
SKU R4-1240R
Specifications:
Pull In Voltage: | 8.4V |
Features: | Sealed Relay with IP67 Rating. Supplied with snap |
Contacts: | Silver AgSnO2 |
Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
Terminal Material: | Zinc Plated |
IP Rating: | IP67 |
Protection: | Resistor |
Terminal Dimensions: | 6.3mm |
Brand: | BRITAX |
Voltage: | 12V |
Mounting Bracket: | Removable metal Bracket |
Dimensions: | 24.5(H) x 26.5(D) x 26.5(W)mm |
Amperage: | 40A |
Coil Power Consumption: | 1.6W |
Type: | SPST N/O |
Terminals - #: | 4 Pin |
