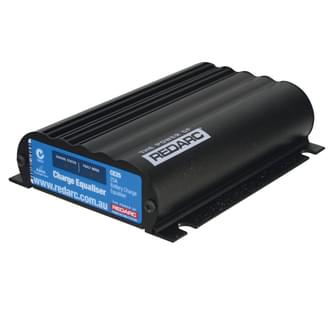

Redarc Charge Equalizer 24V to 12V 40A

by REDARC
Original price $703.00 - Original price $703.00
Original price
$703.00
$703.00 - $703.00
Current price $703.00
SKU CE40S2

The REDARC 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE40S2. The CE40S2 has a maximum 40A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.

 Benefits

  • Designed to keep your 24 volt batteries equally charged
  • Reduce down time and running costs by extending battery life
  • Peak load currents are limited only by the battery
  • Designed for Australia's Harsh Conditions



 Features

  • Based on the award winning BCDC Platform

  • High peak current capability

  • Fast transient response

  • Sealed and suited for commercial applications



Input (Operating) Voltage 20 - 32VDC
Output Current Rating (Cont.) 40A
Input Fuse Rating 60A
Output Fuse Rating 60A
Warranty 2 Years
Standby Current Draw <100mA
Output System Voltage 6 - 16VDC
Length (mm) 150
Width (mm) 120
Height (mm) 37
Weight (kg) 0.68
Type Approval E and CE
